Crawler Dozers
Strong And Efficient
European Plant Services offer the full range of New Holland Crawler Dozers.
The New Holland Crawler Dozer range comprises of machines with operating weights between 13 and 20 tons. They have all been redesigned to maximise strength and reliability along with the power and economy of a new Tier 4i SCR engine.
Contact Sales on 0113 2046919 For Further Information
Specification
Tier 4i SCR technology with increased efficiency, productivity, and fuel economy
Increased efficiency with Dual Path layout Hydrostatic Transmission which maintains the right amount of torque needed for any given job
Triple Reduction Final Drives adds a planetary reduction to the standard double which allows the Hydrostatic Transmission to work at a faster speed reducing the overall pressure and effort on single components
LT, XLT, WT and LGP undercarriage versions
Tough, one piece main frame which evenly spreads loads and reduces component wear
Spacious comfortable cab with ergonomically designed controls and superior visibility
Extended cleaning intervals with reversible radiators fan
Less maintenance with extended service intervals:
Hydraulic / Hydrostatic Oil and filters at 2000 hrs
Engine Oil and Filters at 500 hrs
Engine Coolant at 2000 hrs
Easier maintenance with intelligently grouped and located componants and greasing points.

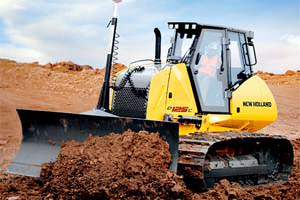

D125C Dozer
Power :
123 hp
Operating Weight :
LT
13,809 kg
WT
14,807 kg
LGP
14,988 kg

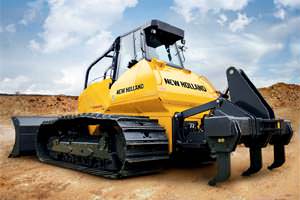

D150C Dozer
Power :
149 hp
Operating Weight :
LT
17,899 kg
WT
18,307 kg
LGP
18,716 kg

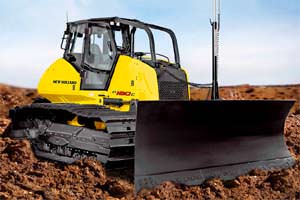

D180C Dozer
Power :
210 hp
Operating Weight :
LT
20,213 kg
XLT
20,599 kg
WT
21,269 kg
LGP
22,115 kg
Download Brochures
Machine Options and Attachments
Extra Options
Ripper - 5 position with 3 shanks
Rear tow hook
Drawbar
Cab rear screen
Radiator brush screen
4 spool hydraulic valve for field installed ripper
3 spool hydraulic valve without plugs for field installed ripper
3 spool hydraulic valve with plugs
CAB canopy brush guard
Centre rockguard
Sweeps
PAT 3.04 m (D125C)
PAT 3.35 m (D125C)
PAT 3.30 m (D150C XLT)
PAT 3.97 m (D150C WT-LGP)
Foldable PAT 3.97 m (D150C WT-LGP)
PAT 3.60 m (D180C LT-XLT)
Rear tow hook
Drawbar
Cab rear screen
Radiator brush screen
4 spool hydraulic valve for field installed ripper
3 spool hydraulic valve without plugs for field installed ripper
3 spool hydraulic valve with plugs
CAB canopy brush guard
Centre rockguard
Sweeps
PAT 3.04 m (D125C)
PAT 3.35 m (D125C)
PAT 3.30 m (D150C XLT)
PAT 3.97 m (D150C WT-LGP)
Foldable PAT 3.97 m (D150C WT-LGP)
PAT 3.60 m (D180C LT-XLT)
PAT 4.06 m (D180C WT-LGP)
Foldable PAT 4.06 m (D180C WT-LGP)
Straight 3.33m (D180C LT-XLT)
Straight 3.90 m (D180C WT-LGP)
Semi-U 3.42 m (D150C-D180C)
Enviromental drain
Advanced Life Track
Grid heater
Additional work lights
Front pull hook
Front counterweight (D125C only)
Blade guidance ready - Trimble
Blade guidance ready - Leica
Blade guidance ready - Topcon
Rearview mirror
Fleet Force Telematics tool
Foldable PAT 4.06 m (D180C WT-LGP)
Straight 3.33m (D180C LT-XLT)
Straight 3.90 m (D180C WT-LGP)
Semi-U 3.42 m (D150C-D180C)
Enviromental drain
Advanced Life Track
Grid heater
Additional work lights
Front pull hook
Front counterweight (D125C only)
Blade guidance ready - Trimble
Blade guidance ready - Leica
Blade guidance ready - Topcon
Rearview mirror
Fleet Force Telematics tool
